A security boost
Digital viewer for Ariete doors
The digital viewer that tells you what's happening outside your home.
The electronic viewer for Ariete armoured doors lets you see who’s at your door, 24 hours a day, 7 days a week.
It replaces your current viewer and, thanks to its 104° wide-angle lens, offers a clear view both day and night.
Check who's at the door
Answer your visitor even when you're not at home
Protection that lasts
Always check who's lingering at your door.

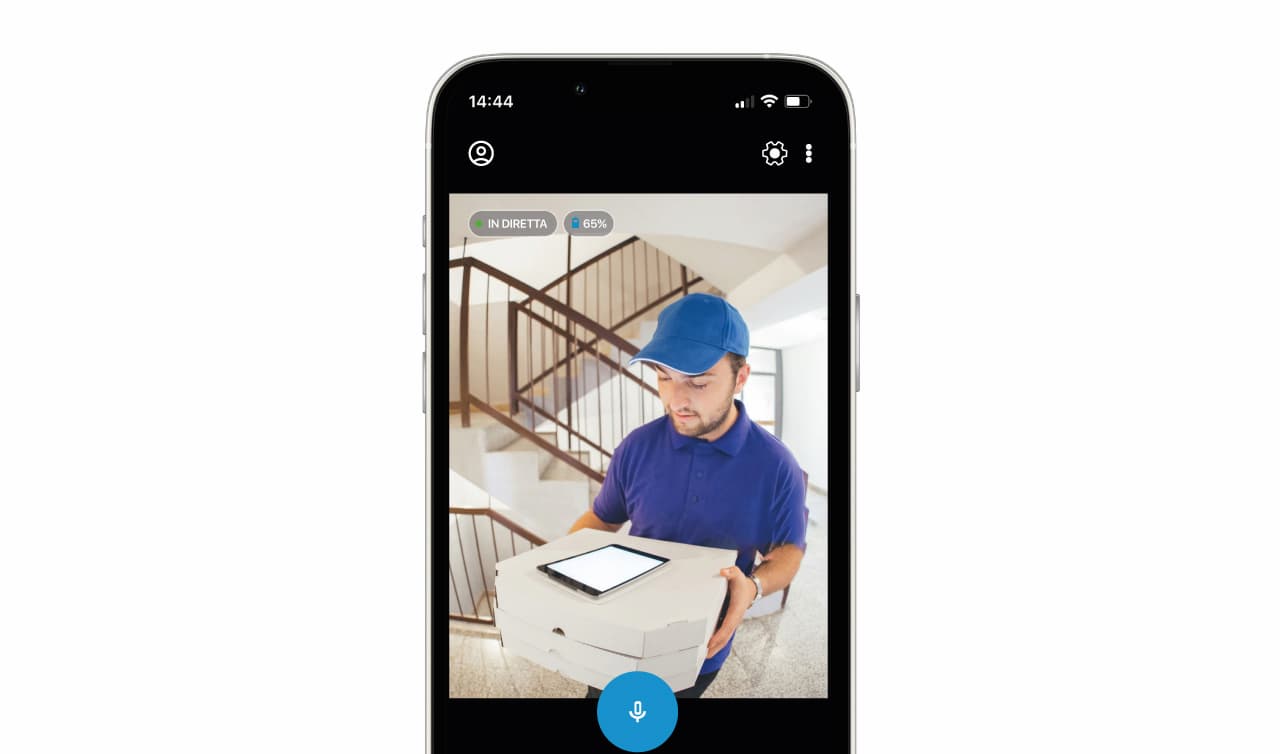

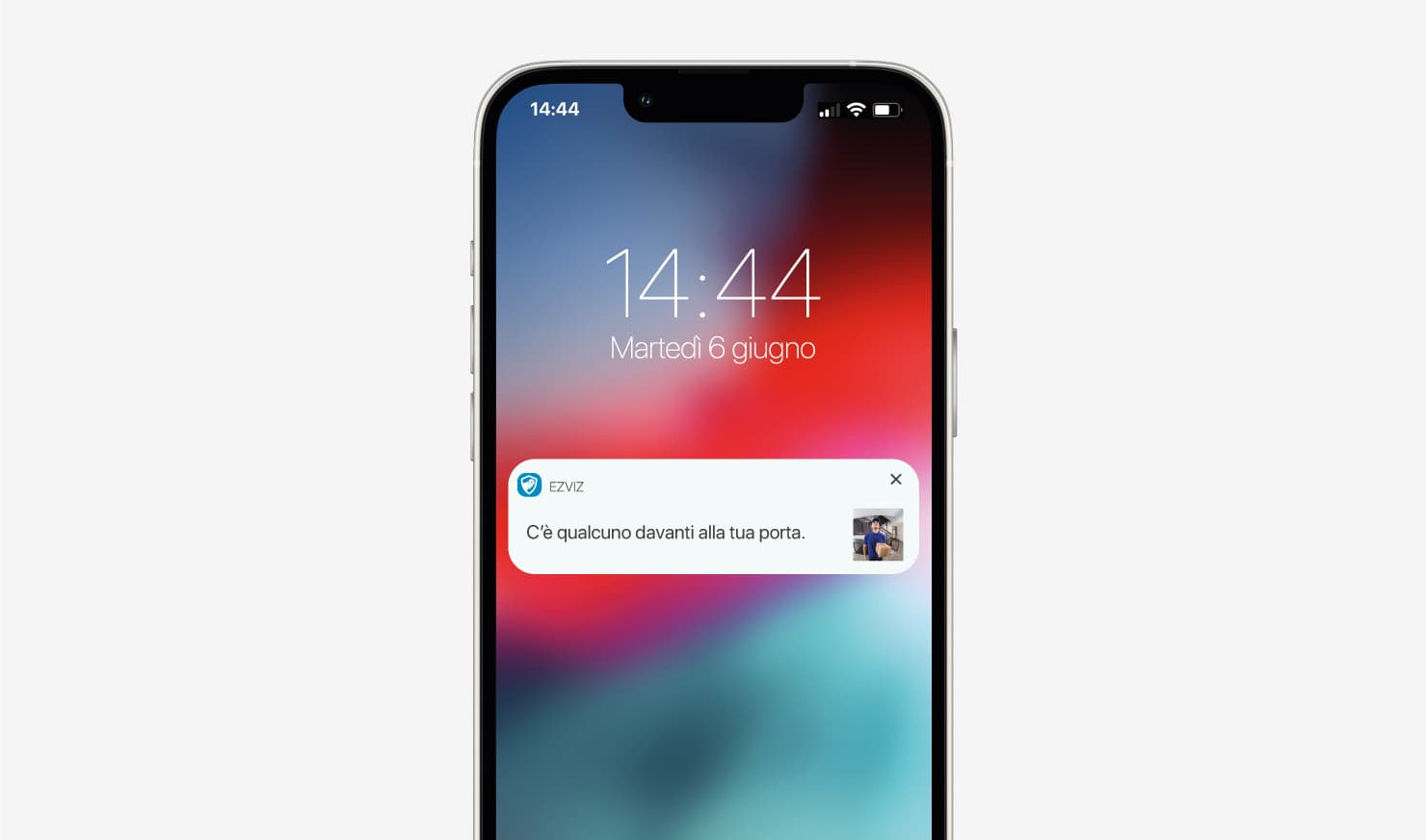

Has the postman arrived? Is an intruder trying to get into your flat? With the digital viewer for Ariete doors, check in real time what’s happening at your front door. And if someone lingers outside your door, you receive a notification on your smartphone with a key image of the event.
- PIR motion-detection system
- Night vision up to 3 metres
- 104° wide-angle lens
- 720p video
Answer whoever's at the door. Even when you're not at home.
Being able to speak helps you interact easily with couriers or other visitors. Thanks to the built-in microphone, you can choose to scare off an intruder or ask the postman to leave the parcel at your door.
- Built-in microphone and speakers
- Talk and listen in HD
- Two-way communication
- Echo and noise cancellation

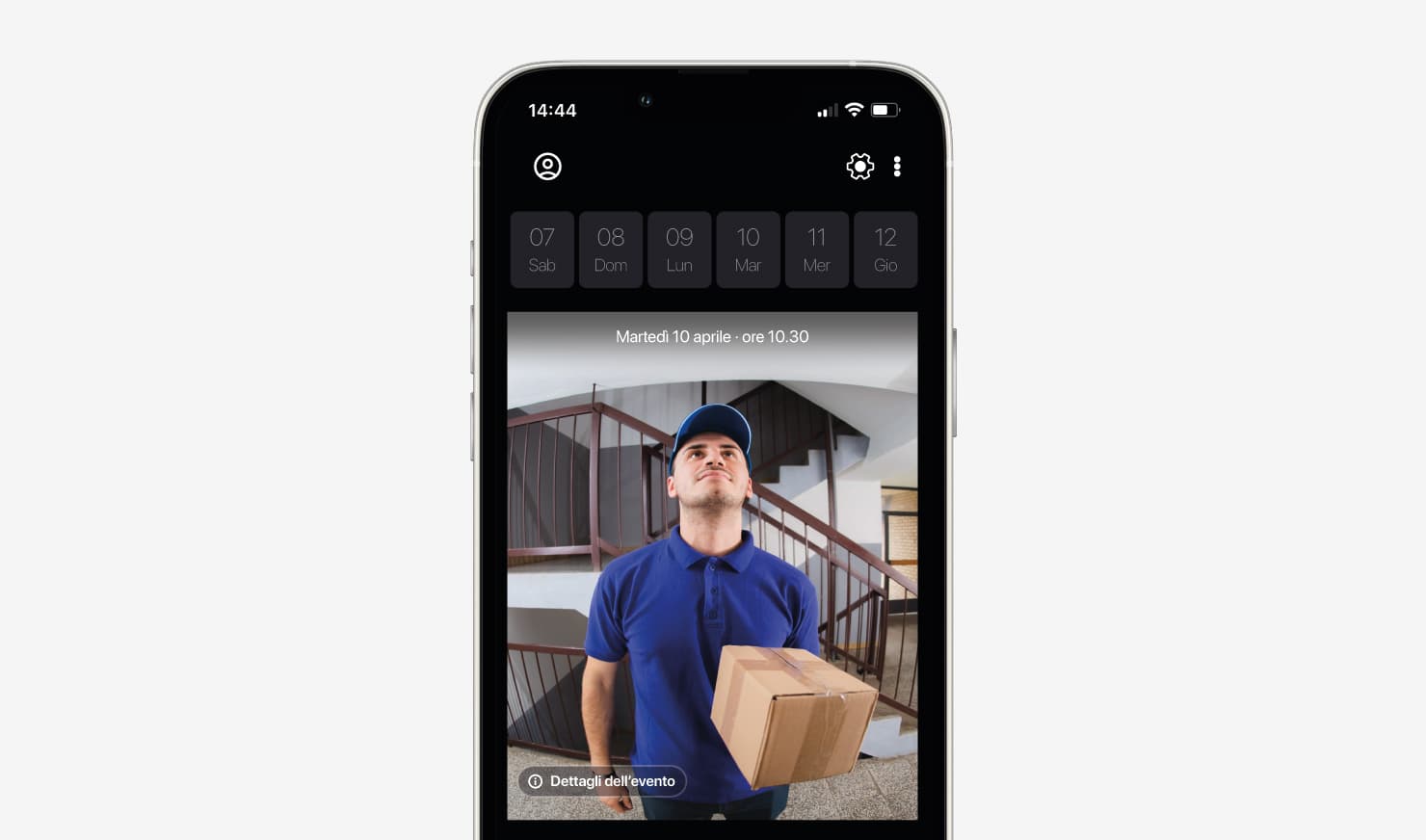

Check in real time or go back in time.
See what’s happening at your front door. You can keep everything under control at any time and wherever you are. You can save videos and photos locally on a 256 GB memory card, which can be inserted into the internal monitor. If you miss a notification, you can go back and watch what happened. Catch an intruder red-handed or check later who stopped in front of your door.
- Supports micro SD cards
- Maximum storage space 256GB
- Supports EZVIZ Cloudplay
- Encrypted Cloud storage
Protection that lasts.
The digital viewer is battery-powered, so it’s compatible with any Ariete door. Thanks to the 4,600 mAh rechargeable lithium battery built into the display, the digital viewer offers long battery life with minimal power consumption. Thanks to its smart energy-saving function, stand-by time can last up to 3 months.
Wall-mounted battery charger
External battery charger
Internal Armoured Doors - Interior 4 concealed
Technical specifications
Spec sheet
- Model: CS-DP2-A0-6E2WPFBS

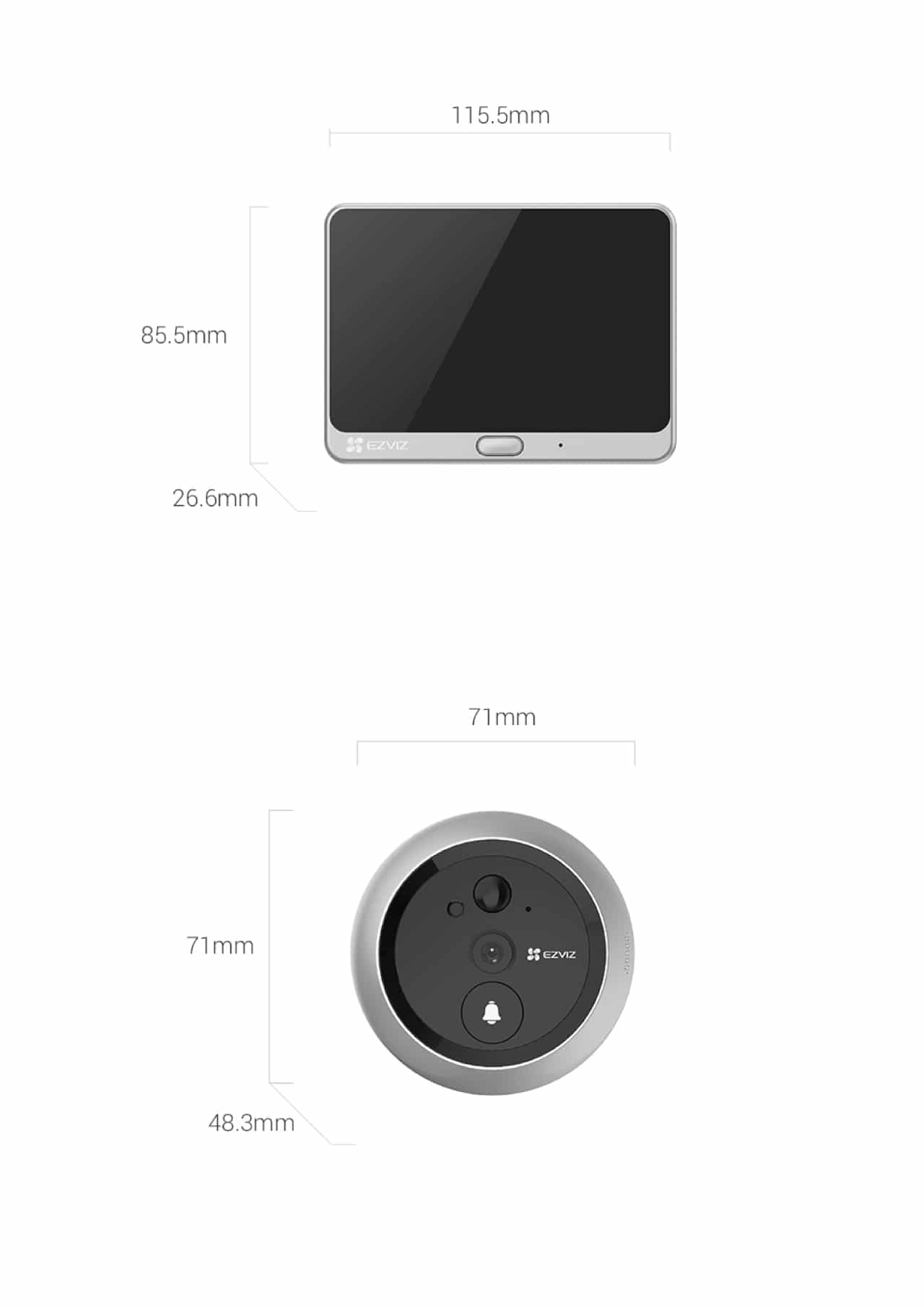

- Screen dimensions: 115.5 x 85.5 x 24.5 mm
- Camera dimensions: 71 x 71 x 48.3 mm
- Button: doorbell, power
- Supported viewer diameter: from 16.5 to 50 mm
- Weight: product 320g, with packaging 603g
- Screen: 4.3" colour
- Colour: silver
- Operating conditions: -10°C to 45°C
Camera
- Sensor: progressive scan
- Lens: 2.0 mm at F2.0, angle: 166° (diag.), 136° (horiz.), 80° (vert.)
- Day/night switching: ICR infrared filter
- Maximum resolution: 1080p/2MP
- Night-time IR range: up to 5 metres
Audio and Video
- Video frame rate: 15 fps
- WDR: DWDR
- Audio input: high-sensitivity microphone
- Audio output: integrated high-power speaker
- Ringtones: up to 5, with adjustable volume
Easy to fit.
Wherever you like.
Our technicians will fit the digital viewer directly onto your new Ariete armoured door. And since it runs on batteries, the door does not need to be near a power socket.
FAQs
The digital viewer is a battery-powered electronic device that, once fitted, gives you a very clear view of the people who come to your door.
The digital peephole is very similar to a traditional viewer.
From outside the home, in most cases, it is very hard to spot the difference and tell a digital viewer for armoured doors from a traditional one.
Inside the home, however, there is a monitor from which you can watch what is happening on the landing or outside your home.
The view of what is going on is certainly clearer and sharper than anything you could make out through a classic peephole.
The digital viewer has a sensor on the outside and, as I mentioned, a screen on the part inside the home.
To activate the viewer you simply press a button (located next to the display) and the image will appear on the screen.
What is more, thanks to this tool, if you feel the urgent need to check what is happening outside your door because there are voices or noises that make you suspicious, a single press of a button will meet that need, without having to go out to investigate and risk an unpleasant encounter.
More specifically, the digital viewer for armoured doors also has a recording function: this feature means the device can store on a micro SD card everything that happens in front of your door.
This model also lets you take photographs, so you can find out who came to your door, or nearby, even at a later time.
This way, truly nothing will escape you and you can have complete control of your home at any hour, whether you happen to be at home or not.
The device has an internet connection that obviously lets you see who is there and what is happening in front of your door, or near where you live, when you are away.
All of this in real time.
Finally, the Ariete digital viewer for armoured doors has a motion sensor: the device activates on its own the moment it detects any movement outside the door, and it will send you a notification with a photo (or video) of your visitor.
A clearer and wider view, plus the ability to record, take photos, connect remotely and use a motion sensor.
On top of all this, a huge advantage of this device is that it can be used easily even by children and by people who use a wheelchair, because there is no longer any need to bring your eye up to the height of the peephole: it is enough to look at the screen.
What is more, a device with a remote connection linked to a smartphone app gives you the chance to watch what is happening straight from your phone or tablet.
Yes, fitting a digital viewer is permitted under Italian law, even when linked to a monitor or a smartphone.
Indeed, ruling no. 34151/2017 of the Italian Court of Cassation stated that “The stairs of a block of flats and the landings of communal staircases do not serve the function of allowing private life to be carried on away from prying eyes, because they are, in fact, intended for use by an indeterminate number of people, and therefore the criminal protection under art. 615 bis of the Italian Criminal Code does not extend to any images captured there”.
The landing of your home is not to be regarded as a “high-risk zone” under art. 615-bis of the Italian Criminal Code (the offence of unlawful interference with private life), and so fitting an electronic viewer is permitted.
For more information, read the dedicated article.
